2003 Sodick AQ750L Wire EDM
EDM, Wire EDM

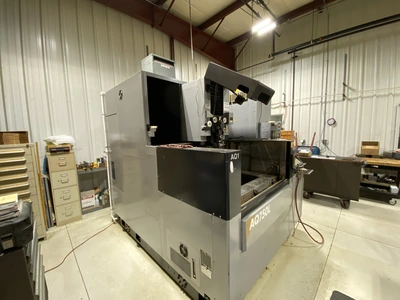

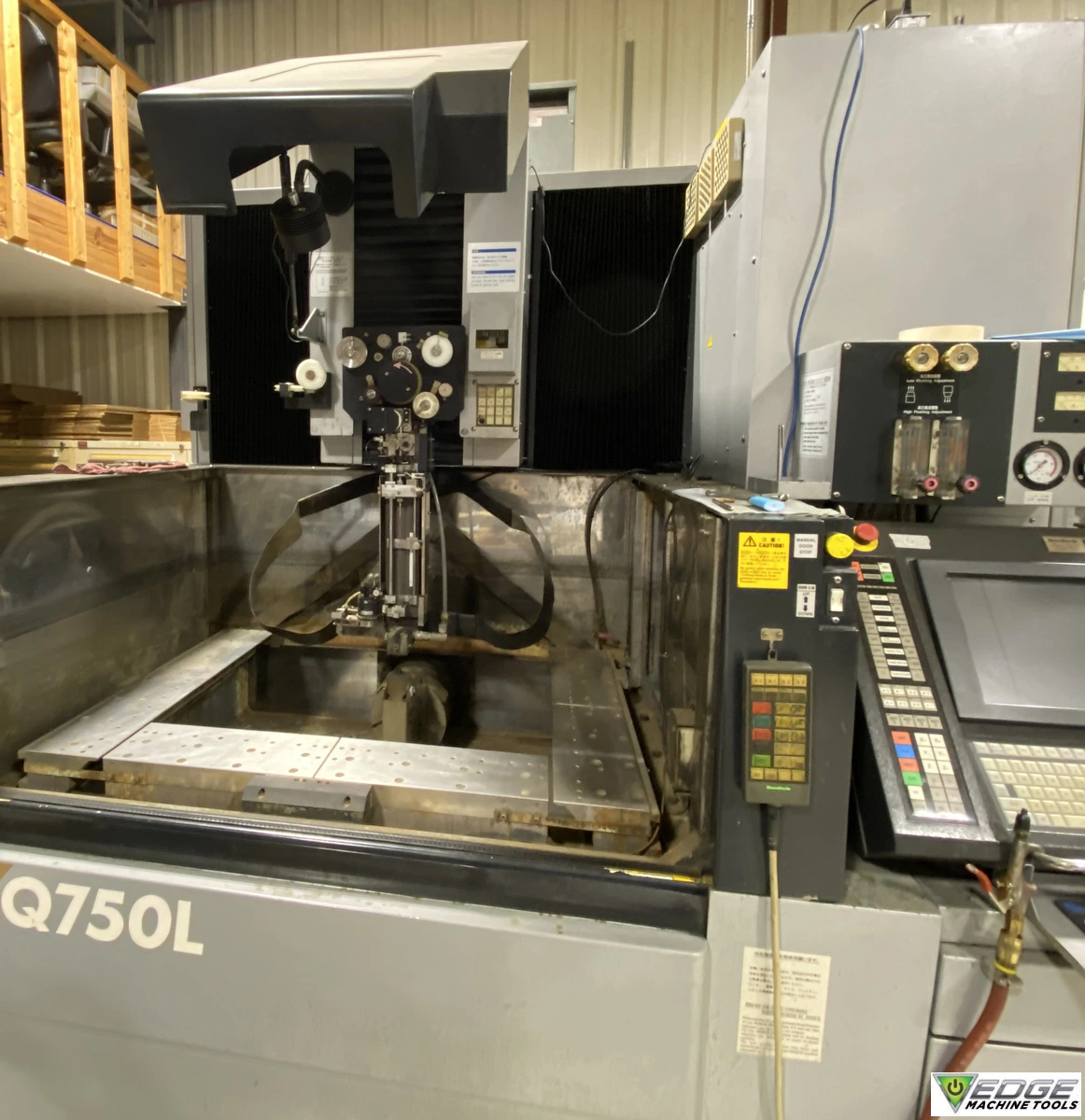

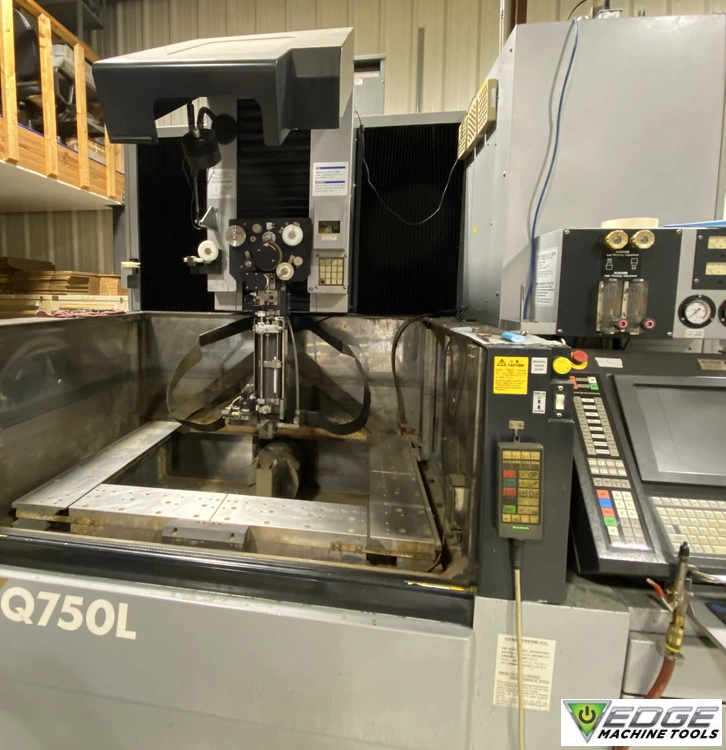

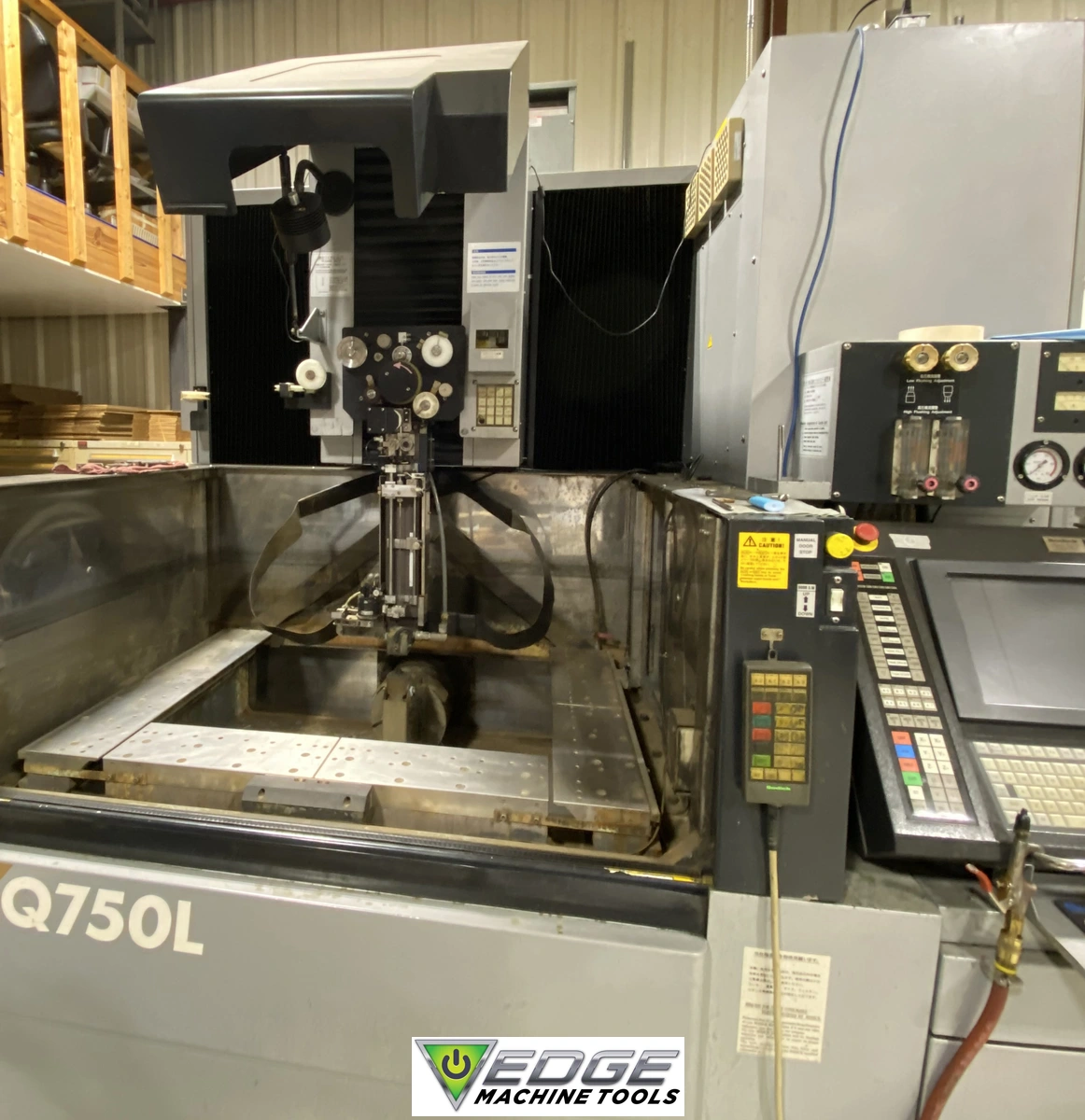

2003 Sodick AQ750L Wire EDM
* 2,492 Cut Time, 30" x 20" x 16" Travels, Chiller
INTRODUCTION:
The AQ750L Wire EDM features Sodick’s Linear Motor Technology. The AQ Series is Sodick’s line of large work area and extreme taper Wire EDMs. The AQ750L features a fixed table design which allows for a workpiece with greater weight to be machined without affecting the table positioning or workpiece accuracy.
| # of Axis | 5 |
| Table Size - L | 41.75 in |
| Table Size - W | 29.8125 in |
| Table Load Capacity | 3307 lb |
| X - Axis Travel | 29.53 in |
| Y - Axis Travel | 19.68 in |
| Z - Axis Travel | 15.75 in |
| U/V - Axis Travel | 30.312 in |
| Taper Capacity | 30 deg |
| Auto Threading (Yes/No) | Yes |
| Wire Diameter - Min | 0.004 in |
| Wire Diameter - Max | 0.012 in |
| Dielectric Tank Capacity | 433 gal |
| Submerged (Yes/No) | Yes |
| Power Requirement | 220 va |
| Transformer Included | Yes |
| Control | CNC (LN1W) |
| Dimensions | 83" x 110" x 92" |
| Weight | 11685 |
