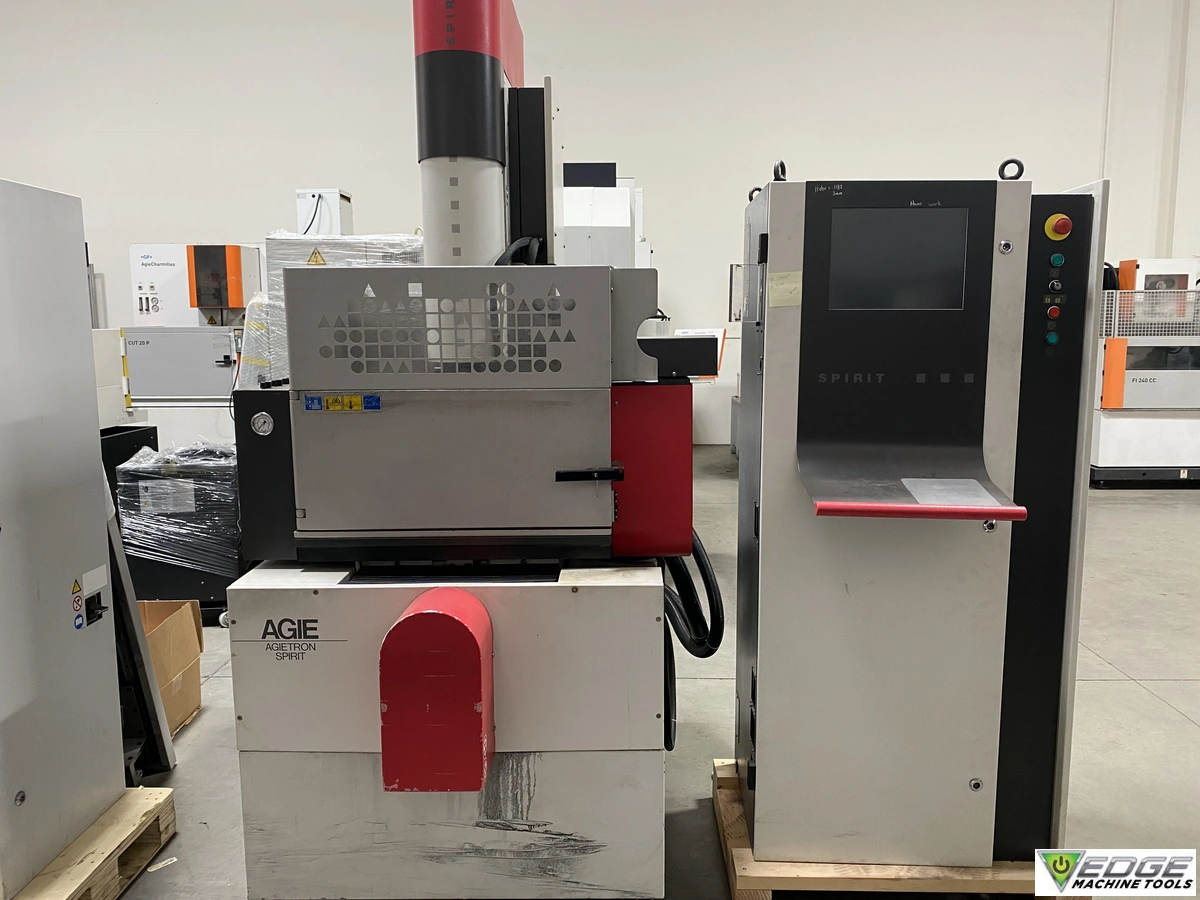

Agie Spirit 2 CNC Sinker EDM, 2005, C-Axis, ATC
EDM, Sinker EDM
| # of Axis | 4 |
| Table Size-W | 15.7" |
| Table Size-L | 11.8" |
| Table Load Capacity | 2822 lb |
| X - Axis Travel | 11.8" |
| Y - Axis Travel | 9.85" |
| Z - Axis Travel | 9.85" |
| C-Axis equipped | Yes |
| Tool Changer Positions | 0 |
| Dielectric Tank Capacity | 300 gal |
| Tool Changer Type | Rack |
| Chiller Included | Yes |
| Power Requirement | 220440 |
| Transformer Included | Yes |
| Control | CNC (Agietron) |
| Dimensions | 73" x 83" x 93" |
| Weight | 2,822 lbs |
Rack ATC 5-10 Positions
C-Axis
System 3R Macro Chuck
