Mitsubishi MD+Pro II wire EDM, 2010
EDM, Wire EDM
| # of Axis | 5 |
| Table Size - L | 21.3 in |
| Table Size - W | 16.9 in |
| Table Load Capacity | 1100 lb |
| X - Axis Travel | 12.6 in |
| Y - Axis Travel | 9.8 in |
| Z - Axis Travel | 8.7 in |
| U/V - Axis Travel | 1.3 in |
| Taper Capacity | 153.9 deg |
| Auto Threading (Yes/No) | Yes |
| Wire Diameter - Min | 0.004 in |
| Wire Diameter - Max | 0.012 in |
| Dielectric Tank Capacity | 116 gal |
| Submerged (Yes/No) | Yes |
| Chiller Included | yes |
| Power Requirement | 20022000 va |
| Control | CNC (Mitsubishi W30BV-2, 64 Bit Control) |
| Dimensions | 70" x 94" x 80" |
| Weight | 4,500 lbs |
Mitsubishi V350-IIMulti-Tasking Control
Electric Chiller

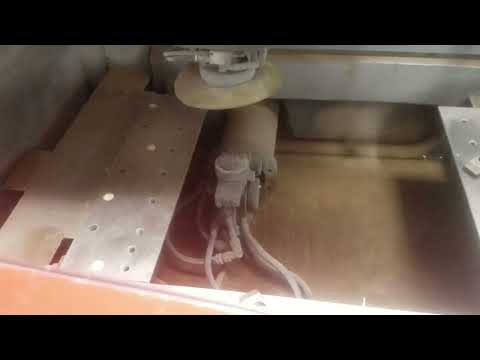

Submerged Machining
AC Servo Drives
Manuals, Discs
