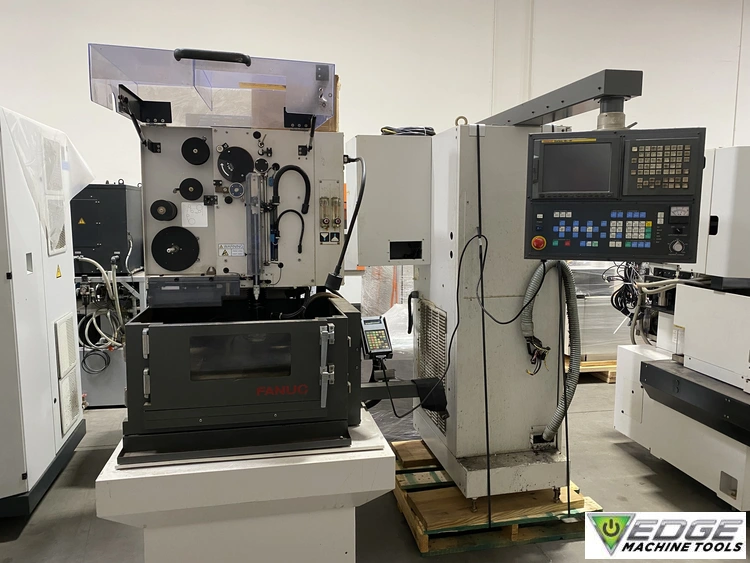

Fanuc Alpha 0iA Wire EDM, New in 1999
EDM, Wire EDM
• Fanuc high speed digital / AC power supply
• Fanuc series 18iW 64 bit CNC control
• Fanuc serial / digital AC servo motors. Absolute position detection system
• Five controllable axes (X,Y,U,V, Z)
• Column mounted independent U and V axis slides
• Automatic wire feed system (21 sec. spark to spark)
• Anti-Crash protection
• AI function – Automatic setting of cutting conditions
• Handy controller (Hand held pendant)
• Quick conversational programming
• Coordinating system rotation
| # of Axis | 5 |
| Table Load Capacity | 2200 lb |
| X - Axis Travel | 12.6 in |
| Y - Axis Travel | 8.7 in |
| Z - Axis Travel | 7.1 in |
| U/V - Axis Travel | 2.364 in |
| Taper Capacity | 30 deg |
| Auto Threading (Yes/No) | Yes |
| Wire Diameter - Min | 0.004 in |
| Wire Diameter - Max | 0.012 in |
| Dielectric Tank Capacity | 103 gal |
| Submerged (Yes/No) | Yes |
| Power Requirement | 220 va |
| Control | CNC |
| Dimensions | 78" x 78" x 77" |
| Weight | 4,000 lbs |
