AgieCharmilles Progress VP2 Wire EDM, New in 2011
EDM, Wire EDM

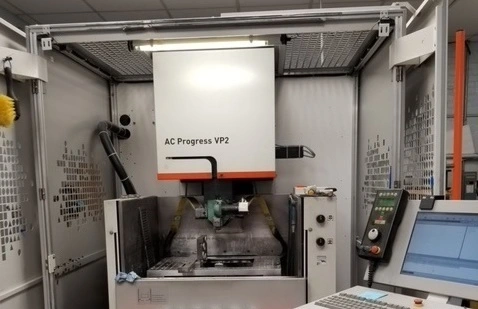

AgieCharmilles Progress VP2 Wire EDM
New in 2011, 15,921 cut hours
* IPG Generator - Faster Speeds, Better Finishes
* Dual Measuring for X & Y Axis
* Diamond V Guides - One guide for all wire diameters
* 3D Set-up - Probe automatically measures workpiece height
| # of Axis | 5 |
| Table Size - L | 29.5 in |
| Table Size - W | 21.6 in |
| Table Load Capacity | 440 lb |
| X - Axis Travel | 13.77 in |
| Y - Axis Travel | 9.84 in |
| Z - Axis Travel | 10 in |
| U/V - Axis Travel | 2.7 in |
| Taper Capacity | 30 deg |
| Auto Threading (Yes/No) | Yes |
| Wire Diameter - Min | 0.006 in |
| Wire Diameter - Max | 0.012 in |
| Dielectric Tank Capacity | 200 gal |
| Submerged (Yes/No) | Yes No |
| Chiller included | Yes |
| Power Requirement | 220440000 va |
| Transformer Included | Yes |
| Control | CNC (AgieVision 5) |
| Dimensions | 64.5" x 80.3" x 87.4" |
| Weight | 5688 lbs |
AgieCharmilles Progress VP2 Wire EDM
New in 2011, 15,921 cut hours
* AgieVision 5 Control
* IPG Generator - Faster Speeds, Better Finishes
* Dual Measuring for X & Y Axis
* Diamond V Guides - One guide for all wire diameters
* 3D Set-up - Probe automatically measures workpiece height
Chiller
Transformer
