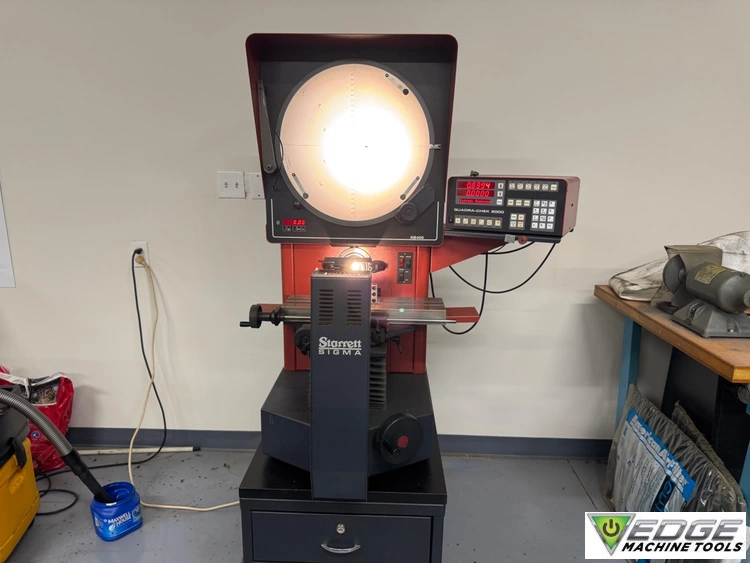

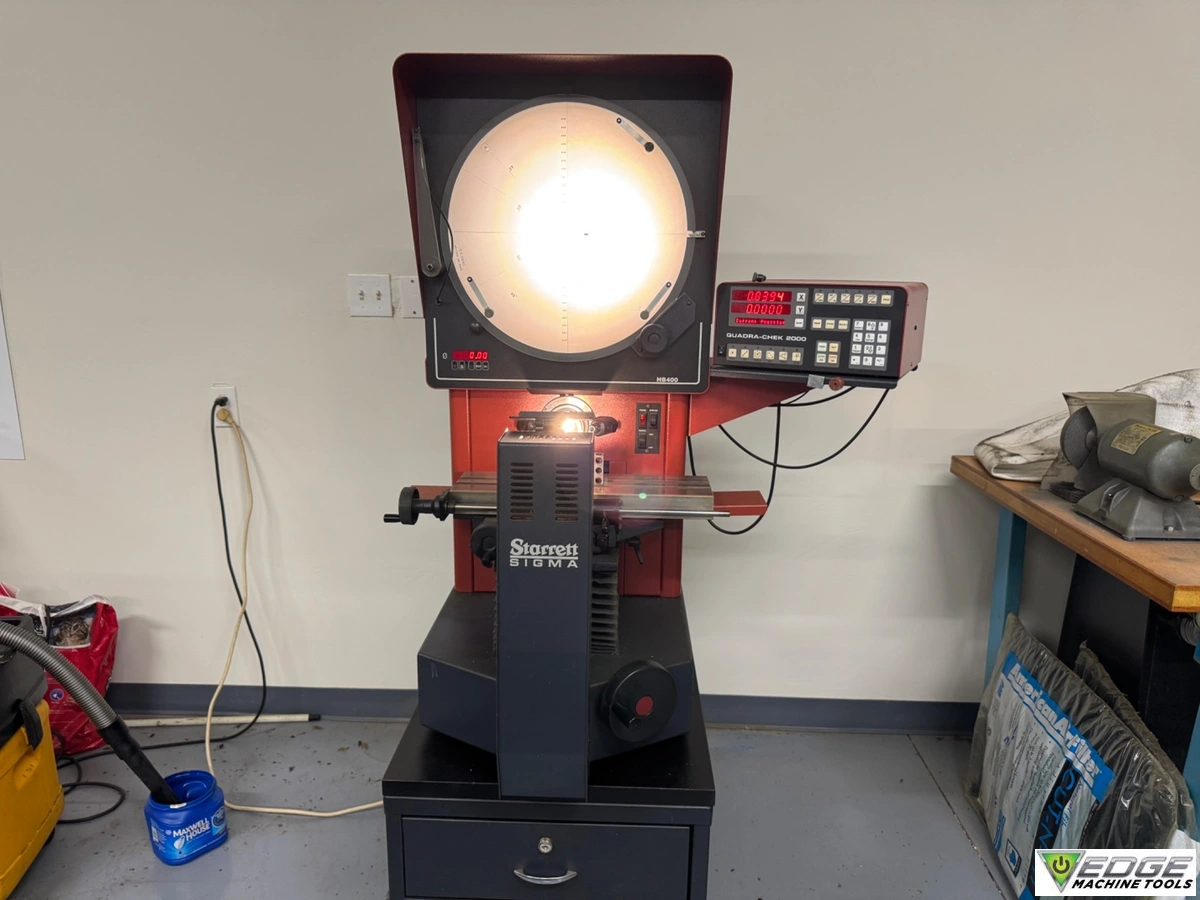

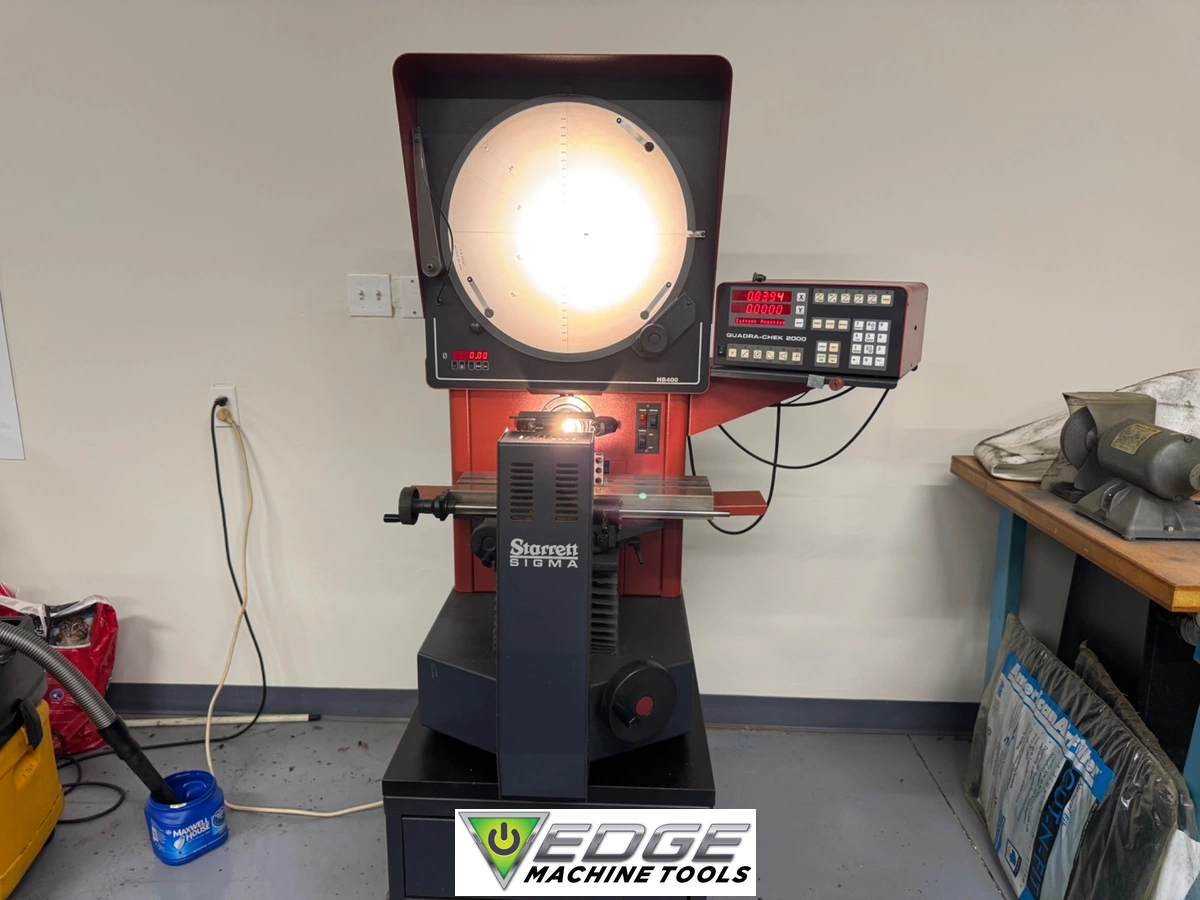

Starrett Sigma HB400 Optical Comparator
Have one to sell?
ConditionUsed
1 available
The HB400 Optical Comparator provides exceptional performance with a 16" (400mm) diameter viewing screen and 110lbs (50kg) workstage load capacity. A bayonet style lens mounting system accepts a choice of 10x and 100x interchangeable lenses.
- 16" x 6" X-Y travel workstage (400mm x 150mm)
- Metronics Quadra-Chek 2000. Advanced geometric constructions, Measure difficult parts, Power to get repeatable readings. Brochure available.
- Edge Detector.
- All metal construction with hard-anodized stage tooling plate
- Comparator Base. 2 Compartments.
- Single bayonet-style lens mounting system
- Linear encoder (glass scale) with 20μin (0.5μm) resolution on both X and Y axes
- Fine adjustment on all axes
- Quick release mechanism on the X-axis
- Starrett 4" w/ 180 deg indexing
- Starrett 2" Vise
- 100x Lense
- 16" x 6" X-Y travel workstage (400mm x 150mm)
- Metronics Quadra-Chek 2000. Advanced geometric constructions, Measure difficult parts, Power to get repeatable readings.
- Edge Detector.
- All metal construction with hard-anodized stage tooling plate
- Comparator Base. 2 Compartments.
- Single bayonet-style lens mounting system
- Linear encoder (glass scale) with 20μin (0.5μm) resolution on both X and Y axes
- Fine adjustment on all axes
- Quick release mechanism on the X-axis
- Starrett 4" w/ 180 deg indexing
- Starrett 2" Vise
- 100x Lense
