Sodick AQ327L Wire EDM

Sodick AQ327L Wire EDM

Have one to sell?
928-800-5195
SALES@EDGEMACHINETOOLS.COM
ConditionUsed
1 available
Have one to sell?

Overview

Type:
EDM, Wire EDM
Manufacturer:
SODICK
Model:
AQ327L
Year:
2006
Stock #:
11326
Status:
For Sale

Description

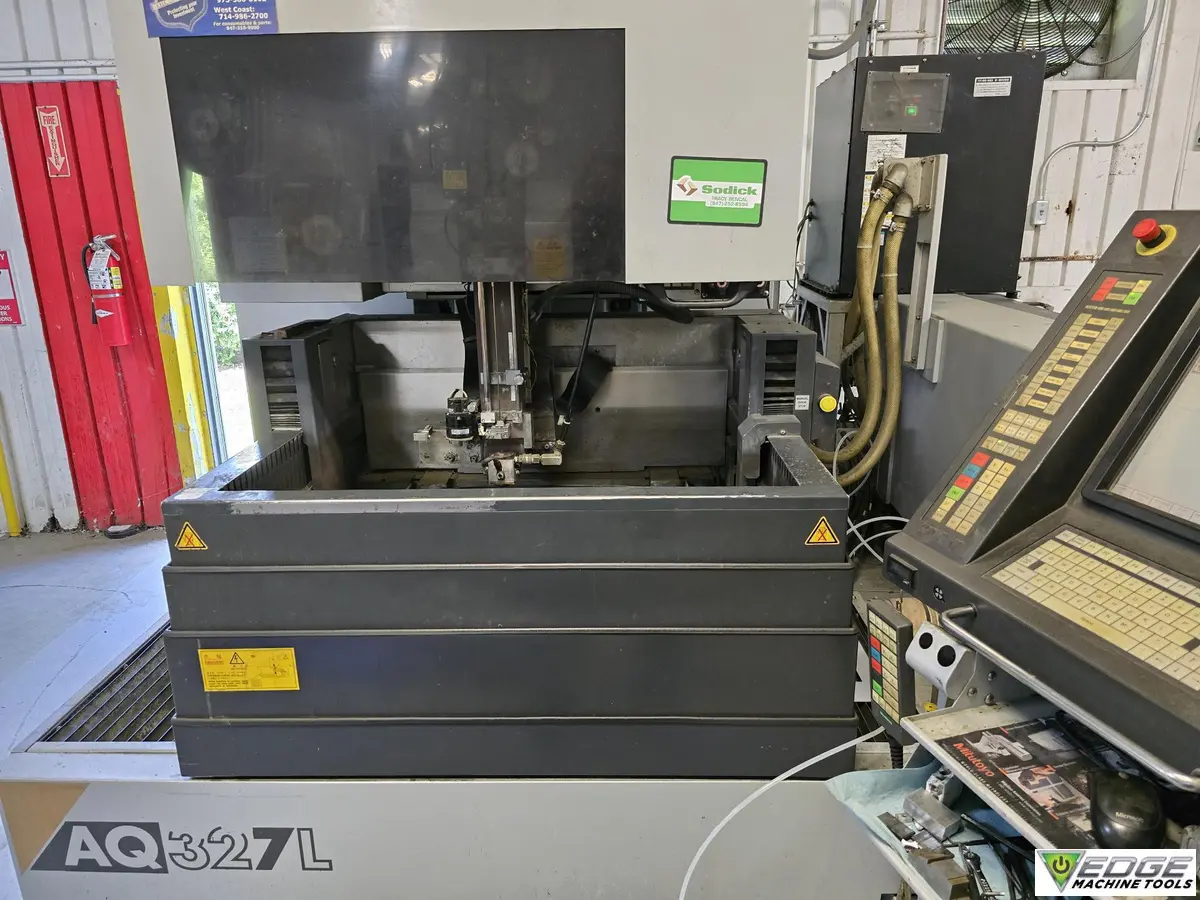

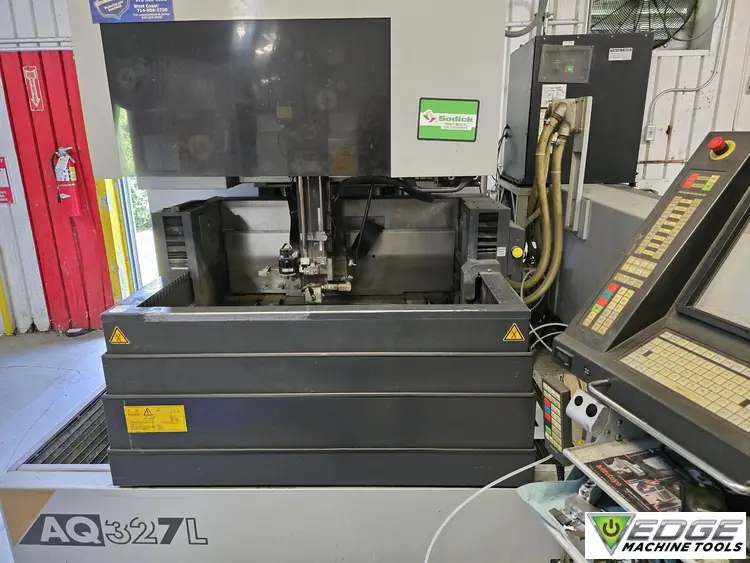

Sodick AQ327L Wire EDM, New 2006
Features:
- Sodick LQ1W Control with Windows Based Operating System and Fine Finish Circuit
- Linear Motor Drives
- Sodick Motion Controller
- Glass Feedback System
- Automatic Rise/Fall Worktank Door. 3 Sided
- Ceramic Components
- Under Power
*Video Available

# of Axis55
Table Load Capacity1000 lb
X - Axis Travel14.57 in
Y - Axis Travel10.63 in
Z - Axis Travel9.84 in
U/V - Axis Travel4.72 in
Taper Capacity25 deg25°
Auto Threading (Yes/No)YesYes
Wire Diameter - Min0.006 in
Wire Diameter - Max0.012 in
Dielectric Tank Capacity158 gal
Submerged (Yes/No)YesYes
Chiller includedYesYes
Power Requirement220 va220 V·A
Transformer IncludedYesYes
Shipping Brackets IncludedYesYes
ControlCNC (Sodick LQ1W)CNC (Sodick LQ1W)
Dimensions83" x 86" x 84"83" x 86" x 84"
Weight7,4957,495

> LQ1W CNC Control, equipped with: Windows operating system, 15" SVGA LCD Monitor and mouse,
- Remote handwheel
- 0.004" - 0.012" Wire Capability
- 40 Amp Power Supply
- Complete Dielectric Filtration System
- Electric Chiller, Automatic Temperature Control
- 3 Sided Drop Tank, Submersible Flushing
- Automatic High Speed Wire Threading
- Transformer
- Auto Power Recovery
- Original Manuals
