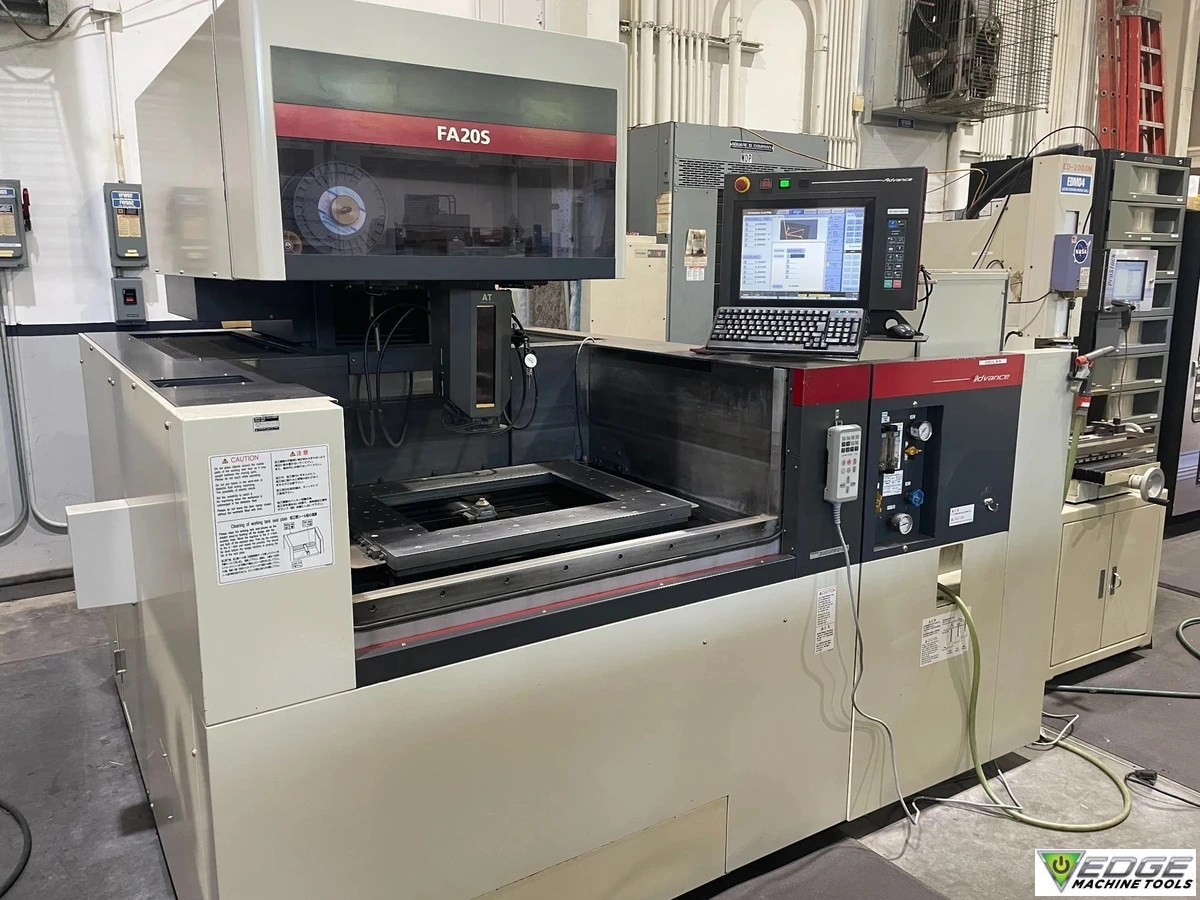

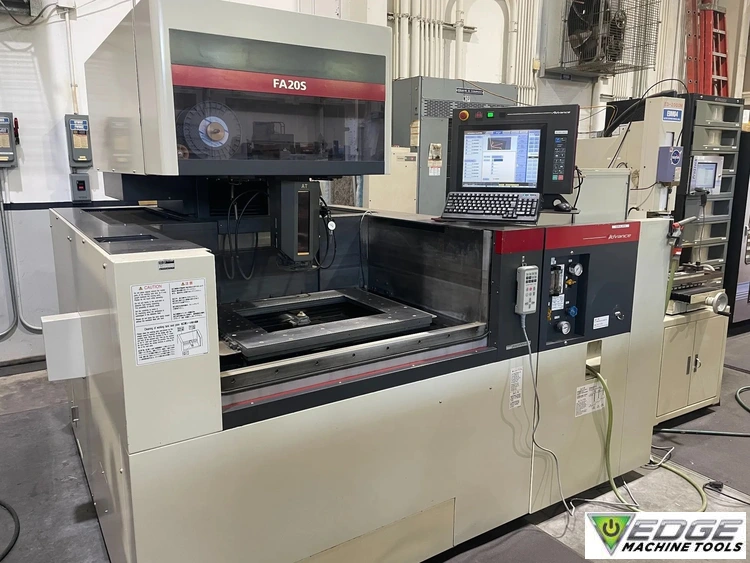

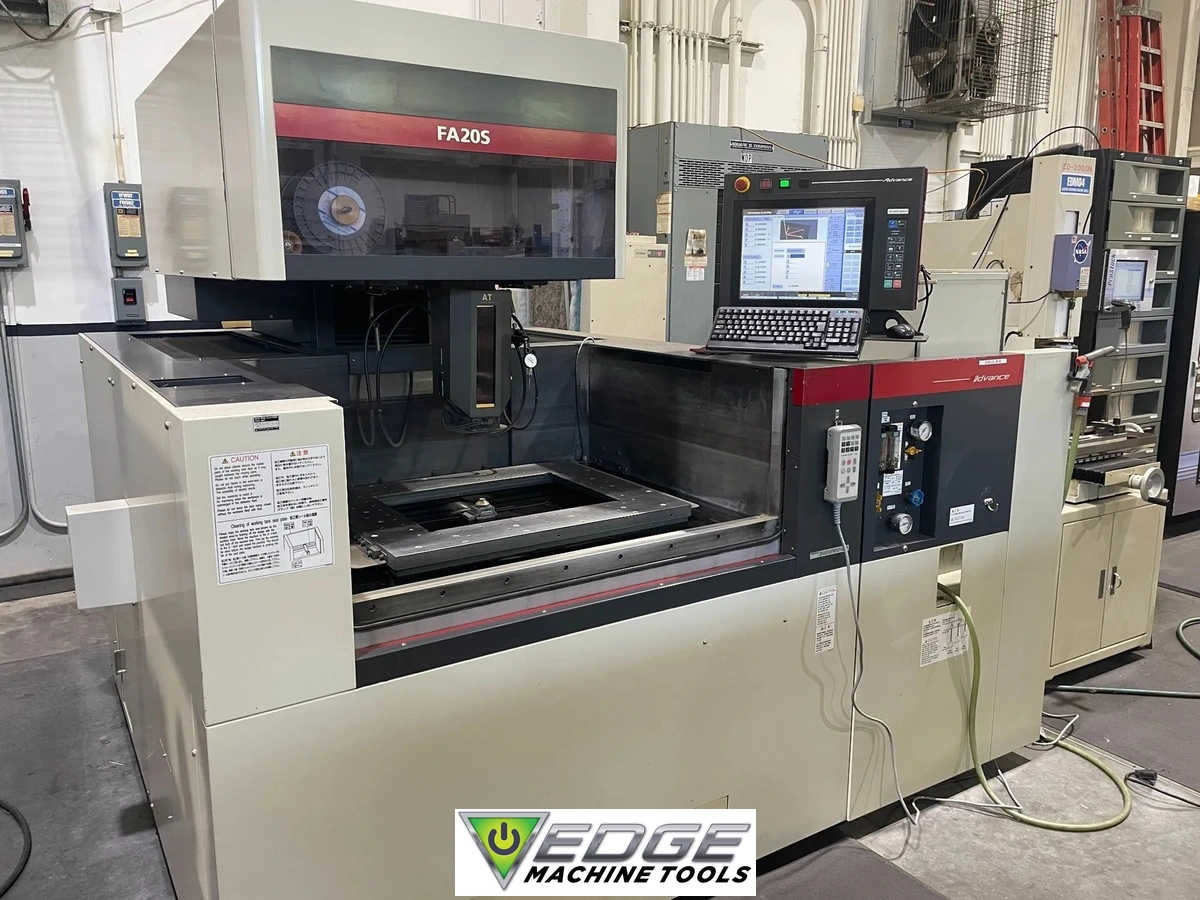

Mitsubishi FA20S Advance Wire EDM, 2007

Description

Mitsubishi FA20S Advance Wire EDM, 2007.

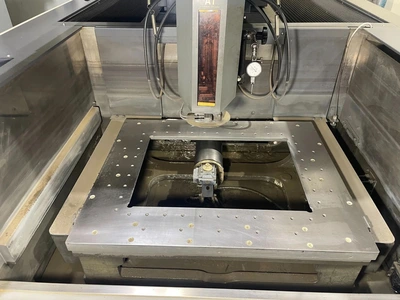

• Submerged machining to 11.8 inch
• Moving Column Design allows greater workpiece weight capability and easier loading
• Direct Drive 32mm Ball Screws
• Linear Motion Guide Ways support X, Y, Z and UV Axes.
• Digital 500 Watt AC Servo Drive System allows unexcelled cutting accuracy and high speed positioning.
• Linear Glass Scales New 4 millionths scales come as standard equipment on the XY axes.
• Standard 3-inch U-V Taper Unit allows up to 15° per side taper cutting in a 10.5" tall workpiece.

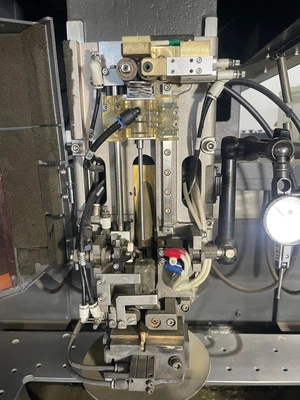

• Automatic Wire Threading (AT) is the world’s fastest auto-threading device with 10 second insert times
• M700 Series Control now offers 15” LCD display, touch panel,
Keyboard and mouse designed with ease of use in mind
(Ergonomics). Utilizing a Windows XP operating system it
includes a 20GB hard drive with a 1GB partition for user program
storage.
• Anti-Electrolysis (AE3-HS) Power Supply

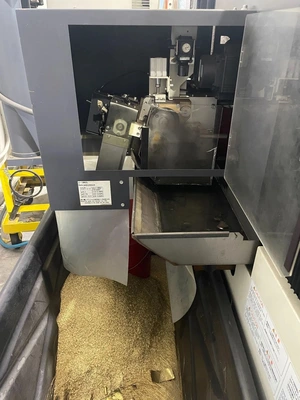

* Wire Chopper
