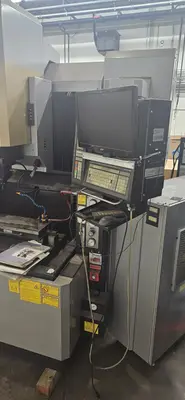

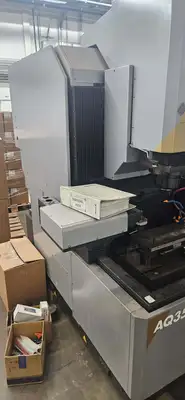

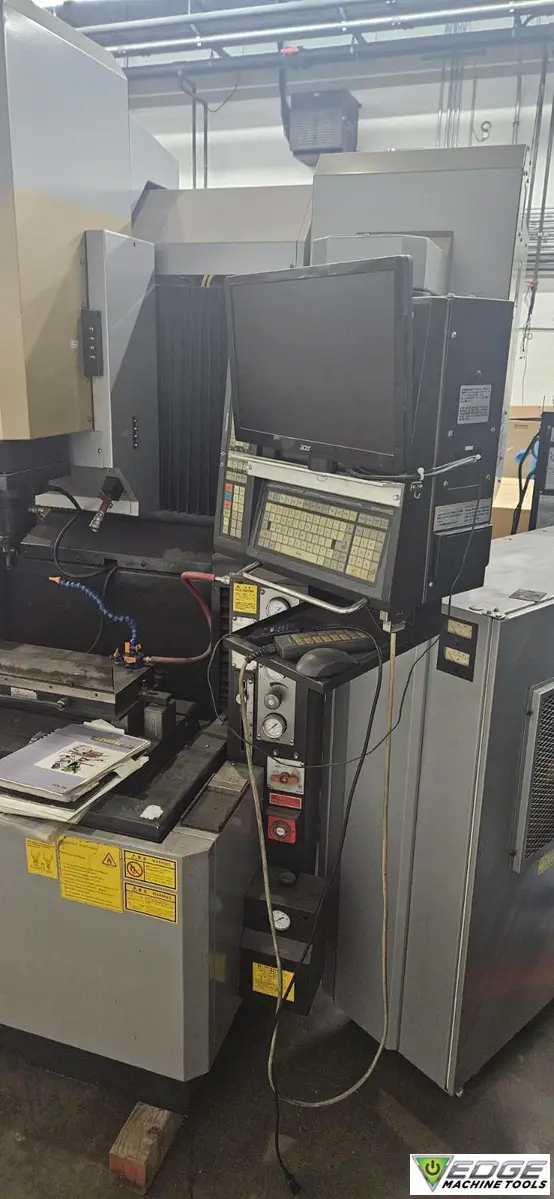

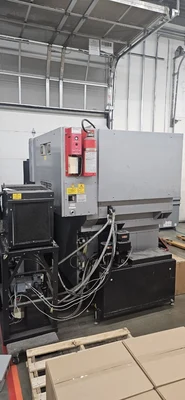

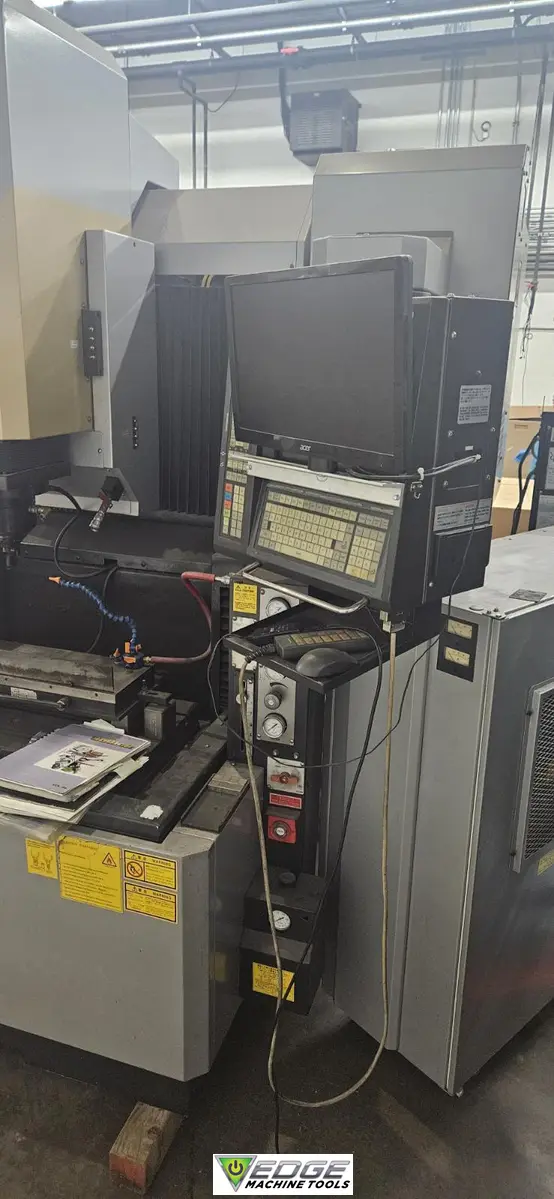

Sodick AQ35L CNC Sinker EDM, New in 2004
- Sodick LN1 Control
- C-Axis
- 4 Position ATC
- System 3R Macro Chuck
- Chiller
- Manuals
# of Axis
4
4
Table Size-W
23.5"
596.9 mm
Table Size-L
15.7"
398.78 mm
Table Load Capacity
1100 lb
X - Axis Travel
13.78"
350.01 mm
Y - Axis Travel
9.8"
248.92 mm
Z - Axis Travel
9.8"
248.92 mm
Power Pack
40 A
40 A
Chuck Brand
System 3R
System 3R
C-Axis equipped
Yes
Yes
Tool Changer Type
Rack
Rack
Tool Changer Positions
4
4
Chiller Included
Yes
Yes
Control
CNC (Sodick LN1)
CNC (Sodick LN1)
Weight
8600 lbs
8600 lbs
