Sodick AQ537L Wire EDM, 2008

Sodick AQ537L Wire EDM, 2008

Have one to sell?
928-800-5195
SALES@EDGEMACHINETOOLS.COM
ConditionUsed
1 available
Have one to sell?

Overview

Type:
EDM, Wire EDM
Manufacturer:
SODICK
Model:
AQ537L
Condition:
Excellent
Year:
2008
Stock #:
11344
Status:
For Sale

Description

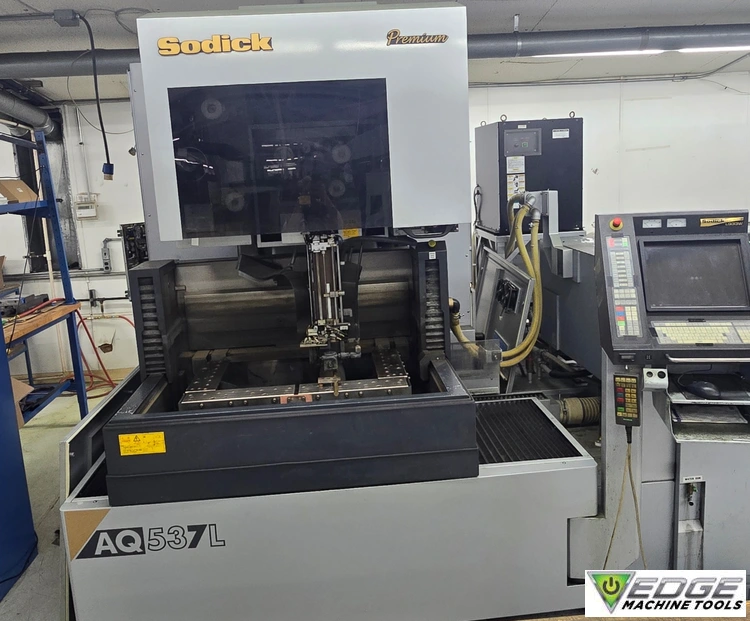

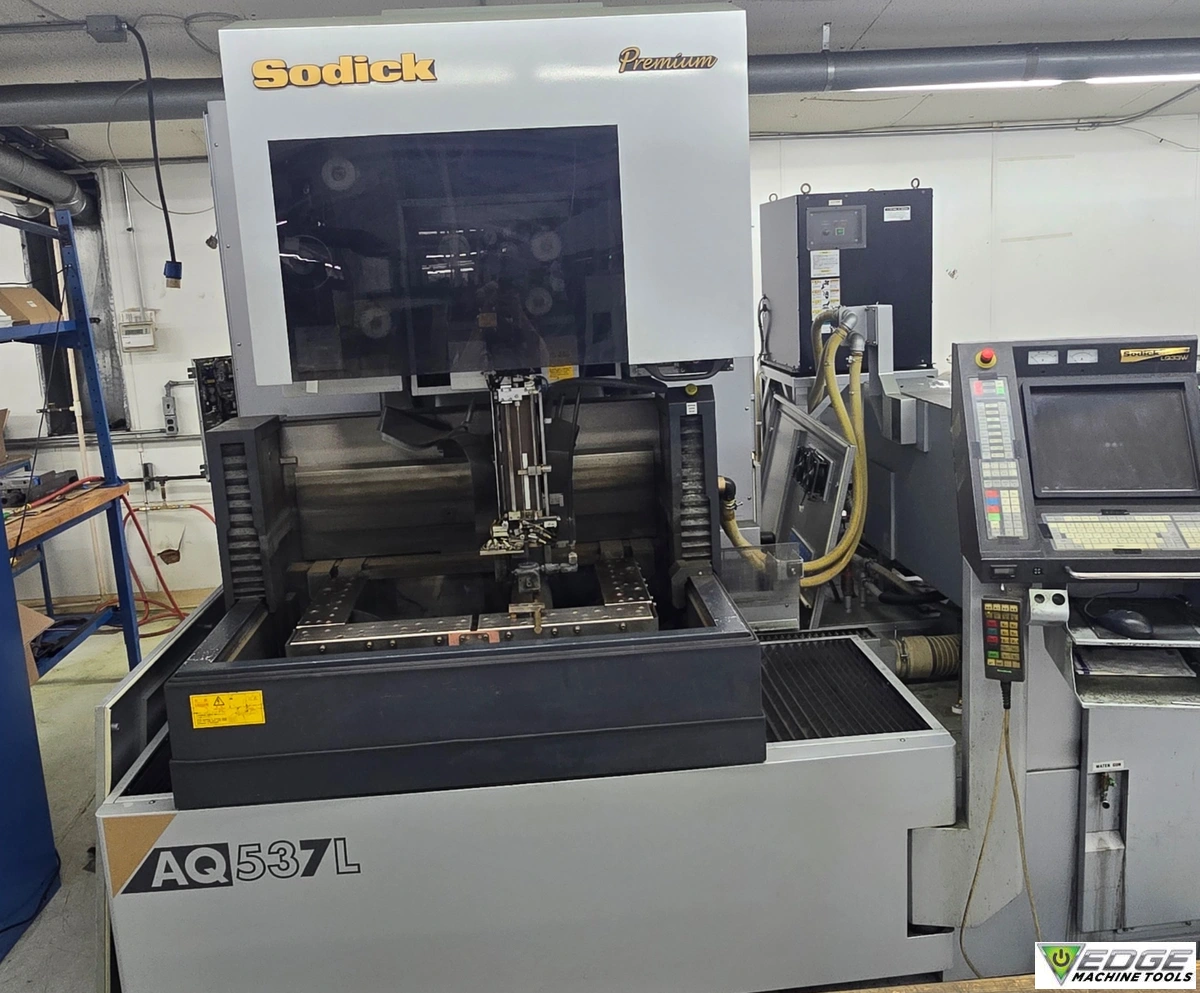

Sodick AQ537L Wire EDM
- PREMIUM MODEL
- LQ33W CNC Control
- 31.625" x 19.625 Table Size
- 13.77 Z-axis travel
- High-Speed Electrolysis Free Circuit
- 15.1" TFT LCD Screen
- Linear Motor Technology
- Linear Scales on X, Y, U, V axis
- Electric Chiller
- Automatic Wire Threading

# of Axis55
Table Size - L31.625 in
Table Size - W19.625 in
Table Load Capacity2200 lb
X - Axis Travel22.44 in
Y - Axis Travel14.57 in
Z - Axis Travel13.77 in
U/V - Axis Travel4.72 in
Taper Capacity25 deg25°
Auto Threading (Yes/No)YesYes
Wire Diameter - Min0.004 in
Wire Diameter - Max0.012 in
Dielectric Tank Capacity211 gal
Submerged (Yes/No)YesYes
Chiller includedYesYes
Power Requirement220 va220 V·A
Shipping Brackets IncludedYesYes
ControlCNC (Sodick LQ33W)CNC (Sodick LQ33W)
Dimensions97" x 102" x 95"97" x 102" x 95"
Weight99009900

- PREMIUM MODEL
- LQ33W CNC Control
- High-Speed Electrolysis Free Circuit
- FT II Contact Position Detection
- Multi Task OS, Sodick Motion Controller
- 15.1" TFT LCD Screen
- Standard 101-Type Keyboard
- Linear Motor Technology
- Linear Scales on X, Y, U, V axis
- Electric Chiller
- Complete Dielectric Filtration System
- Automatic Temperature Control
- Submersible Flushing
- Automatic Wire Threading
