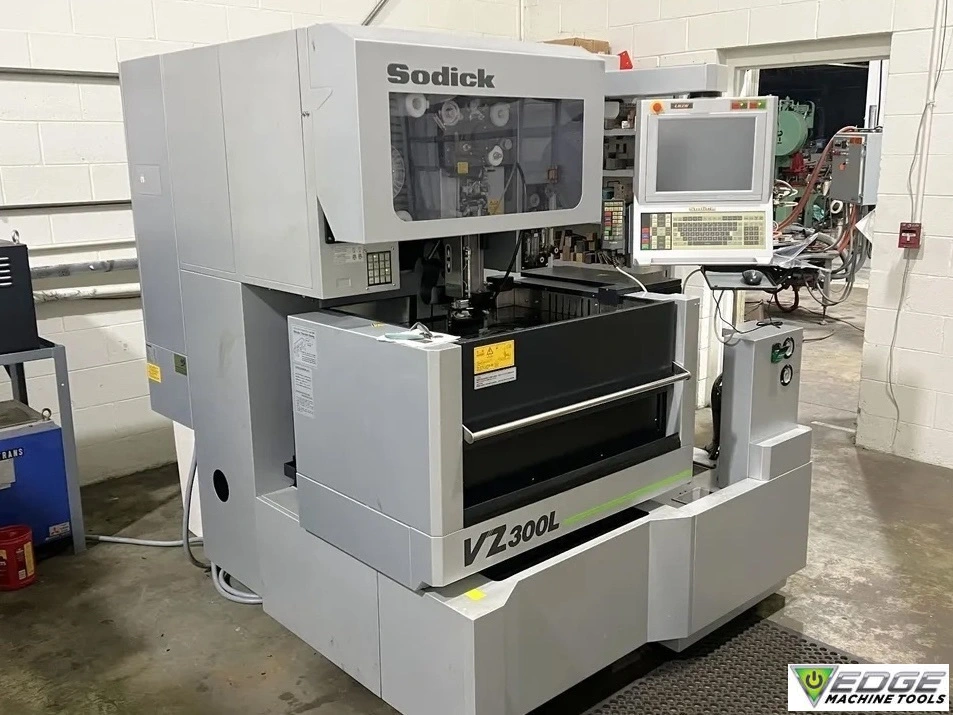

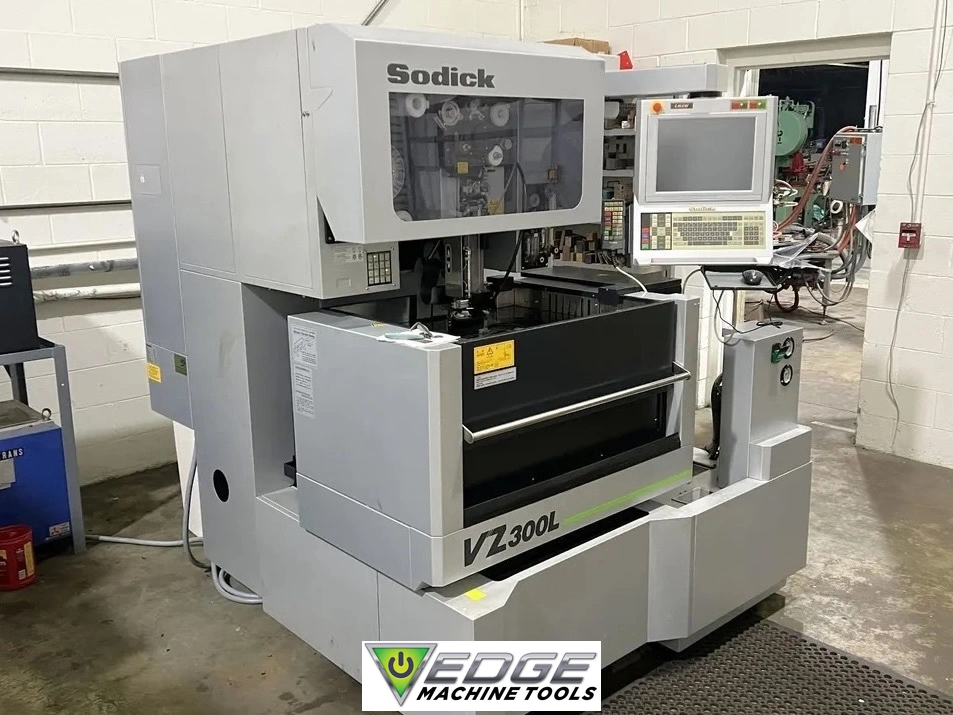

Sodick VZ300L Wire EDM, New in 2015
Have one to sell?
ConditionUsed
1 available
Sodick VZ300L Wire EDM, New in 2015, 1,603 hours
- Linear motor drive wire-cut EDM, using linear motors on the X/Y/Z axes with absolute linear scale feedback.
- Vibration-free linear motor mechanism, giving excellent positioning accuracy with no backlash
- LN2W generator, SODICK Fine Corner Control
- Super Jet automatic wire threader
Key specs:
- Max workpiece dimensions: 30.7" x 22.5" x 8.5", max workpiece weight: 1,100 lbs
- Work tank dimensions: 31.9" x 25.6"
- Taper angle at 4.7" thickness: ±15°
- Sodick LN2W CNC Control
- "Super Jet" Automatic Wire Threading
- Submerged Cutting
- Compact Footprint
Sodick VZ300L Wire EDM, New in 2015, 1,603 hours
- Linear motor drive wire-cut EDM, using linear motors on the X/Y/Z axes with absolute linear scale feedback.
- Vibration-free linear motor mechanism, giving excellent positioning accuracy with no backlash
- LN2W generator, SODICK Fine Corner Control
- Super Jet automatic wire threader
Key specs:
- Max workpiece dimensions: 30.7" x 22.5" x 8.5", max workpiece weight: 1,100 lbs
- Work tank dimensions: 31.9" x 25.6"
- Taper angle at 4.7" thickness: ±15°
Imperial
| # of Axis | 5 |
| Table Load Capacity | 1100 lb |
| X - Axis Travel | 13.77 in |
| Y - Axis Travel | 9.84 in |
| Z - Axis Travel | 8.66 in |
| U/V - Axis Travel | 3.15 in |
| Taper Capacity | 15 deg |
| Auto Threading (Yes/No) | Yes |
| Wire Diameter - Min | 0.006 in |
| Wire Diameter - Max | 0.012 in |
| Dielectric Tank Capacity | 145 gal |
| Submerged (Yes/No) | Yes |
| Chiller included | Yes |
| Power Requirement | 220 va |
| Shipping Brackets Included | Yes |
| Control | CNC (Sodick LN2W) |
| Dimensions | 83" x 86" x 84" |
| Weight | 7,495 |
- Sodick LN2W CNC Control
- "Super Jet" Automatic Wire Threading
- Submerged Cutting
- Compact Footprint
