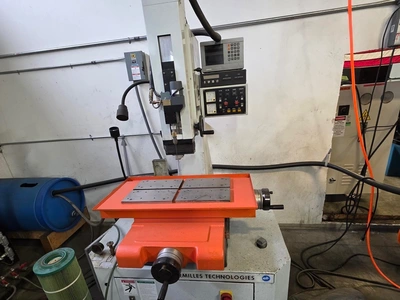

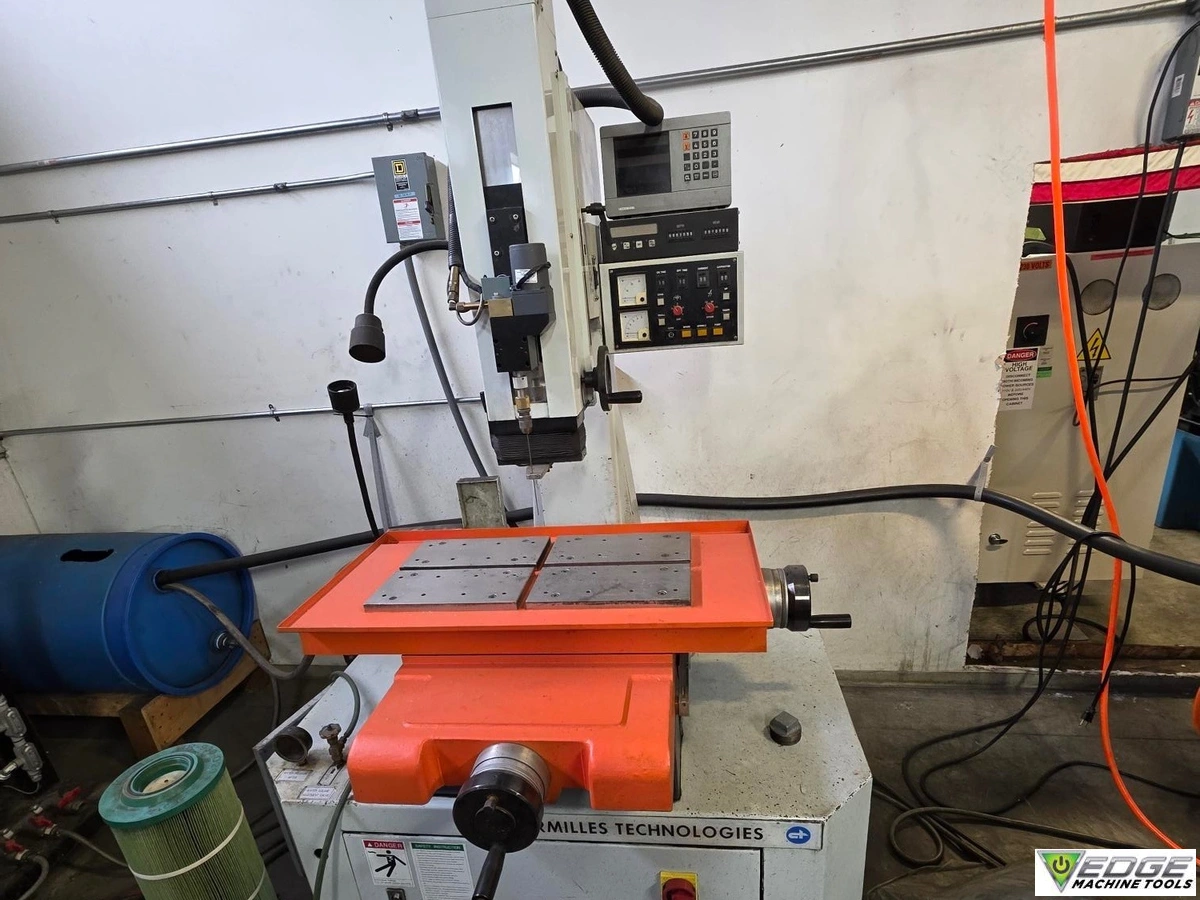

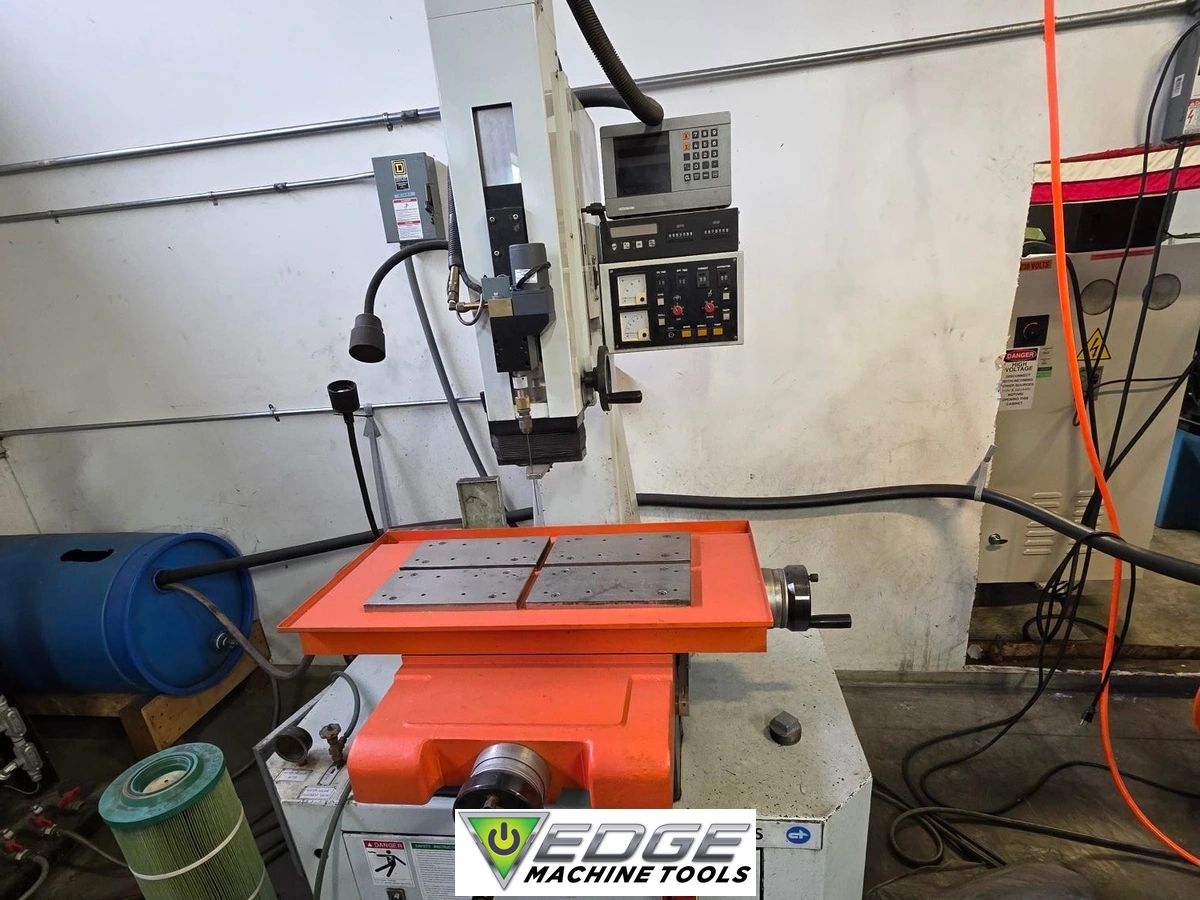

1998 CHARMILLES HD8 EDM Hole Drill
Have one to sell?
ConditionUsed
1 available
- Fast, versatile hole drilling — allows faster drilling of any hole; can be used for machine start holes, cooling holes, blind holes, or holes on inclined faces.
- Uses tubular electrodes that rotate during drilling, which improves flushing and hole quality
- Excels on hard materials, such as hardened steel and tungsten carbide
- Portable — easily moved with a pallet jack
- Fast, versatile hole drilling — allows faster drilling of any hole; can be used for machine start holes, cooling holes, blind holes, or holes on inclined faces.
- Uses tubular electrodes that rotate during drilling, which improves flushing and hole quality
- Excels on hard materials, such as hardened steel and tungsten carbide
- Portable — easily moved with a pallet jack
Imperial
| Table Dimension Length | 23.6 in |
| Table Dimension Width | 11.8 in |
| Table Load Capacity | 440 lb |
| X - Axis Travel | 13.8" |
| Y - Axis Travel | 9.8" |
| Z - Axis Travel | 13.8" |
| Guide Axis Travel | 7.9 in |
| Hole-Dia. (Min) | 0.02" |
| Hole-Dia. (Max) | 0.12" |
| Power Supply | 25 a |
| Dimensions | 48" x 48" x 96" tall |
| Weight | 1800 lbs |
