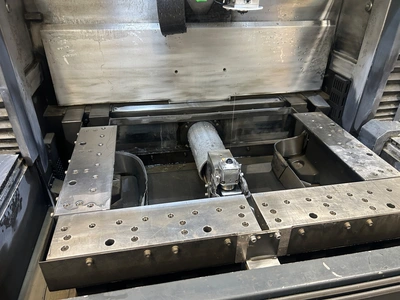

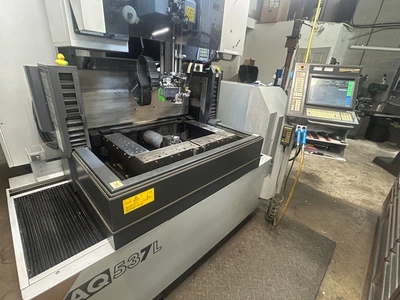

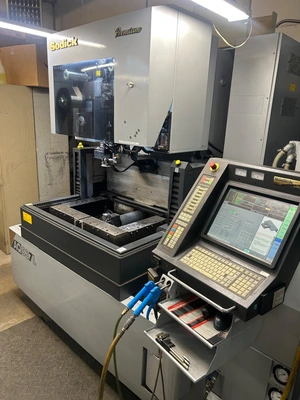

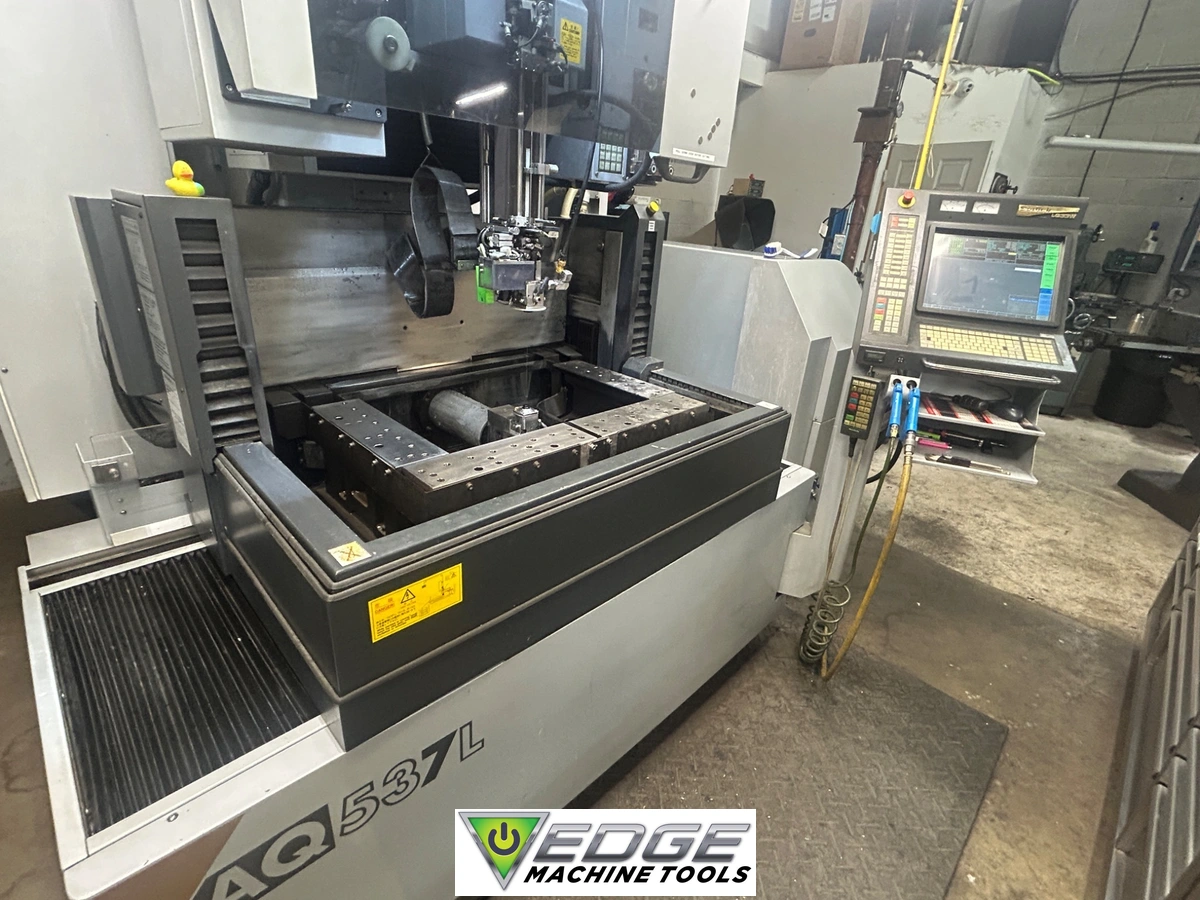

Sodick AQ537L Wire EDM, 2007, clean machine
Have one to sell?
ConditionUsed
1 available

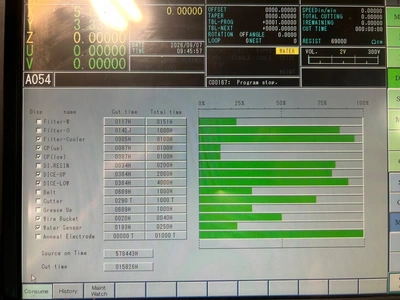

Sodick AQ537L Wire EDM - 15,826 CUT TIME Hours
Very Clean Machine with One Shift Hours
- PREMIUM MODEL
- LQ33W CNC Control
- High-Speed Electrolysis Free Circuit
- FT II Contact Position Detection
- Multi Task OS, Sodick Motion Controller
- 15.1" TFT LCD Screen
- Standard 101-Type Keyboard
- Linear Motor Technology
- Linear Scales on X, Y, U, V axis
- Electric Chiller

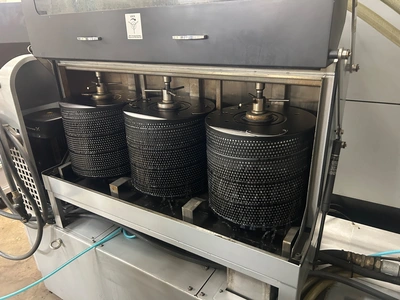

- Complete Dielectric Filtration System
- Automatic Temperature Control
- Submersible Flushing

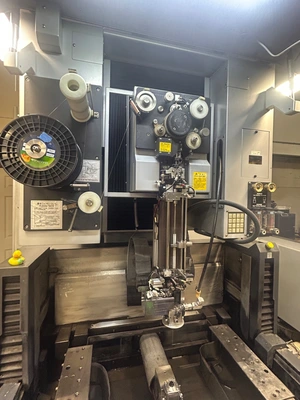

- Automatic Wire Threading
Sodick AQ537L Wire EDM - 15,826 CUT TIME Hours
Very Clean Machine with One Shift Hours
Imperial
| # of Axis | 5 |
| Table Size - L | 31.625 in |
| Table Size - W | 19.625 in |
| Table Load Capacity | 2200 lb |
| X - Axis Travel | 22.44 in |
| Y - Axis Travel | 14.57 in |
| Z - Axis Travel | 13.77 in |
| U/V - Axis Travel | 4.72 in |
| Taper Capacity | 25 deg |
| Auto Threading (Yes/No) | Yes |
| Wire Diameter - Min | 0.004 in |
| Wire Diameter - Max | 0.012 in |
| Dielectric Tank Capacity | 211 gal |
| Submerged (Yes/No) | Yes |
| Chiller included | Yes |
| Shipping Brackets Included | Yes |
| Control | CNC (Sodick LQ33W) |
| Dimensions | 97" x 102" x 95" |
| Weight | 9900 |
- PREMIUM MODEL
- LQ33W CNC Control
- High-Speed Electrolysis Free Circuit
- FT II Contact Position Detection
- Multi Task OS, Sodick Motion Controller
- 15.1" TFT LCD Screen
- Standard 101-Type Keyboard
- Linear Motor Technology
- Linear Scales on X, Y, U, V axis
- Electric Chiller
- Complete Dielectric Filtration System
- Automatic Temperature Control
- Submersible Flushing
- Automatic Wire Threading
